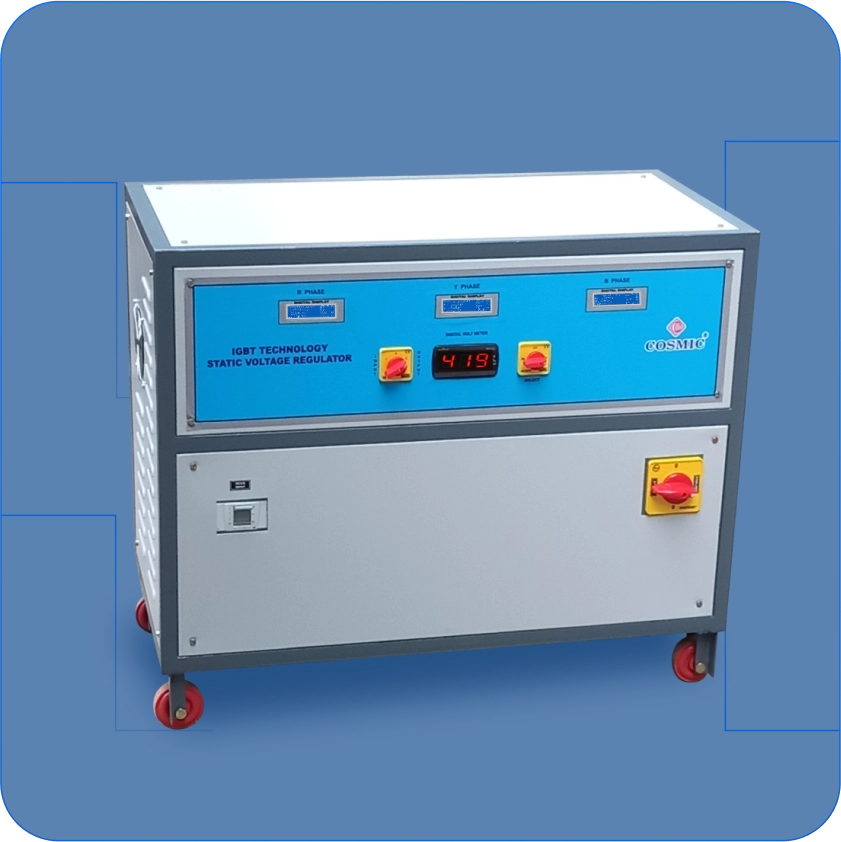

Cosmic® Static Voltage Regulator
Cosmic® Static Voltage Regulator
Cosmic® Static Voltage Regulators are a reliable and durable solution for protecting your electronic devices from voltage fluctuations. It offers a wide input voltage range, fast rate of voltage correction, and a fixed output voltage. Cosmic® Static Voltage Regulators are available in single-phase and three-phase models, making them suitable for Residential, Commercial and Industrial applications.
Features
- Protects electronic devices from voltage fluctuations
- Extends lifespan of electronic devices
- Wide input voltage range
- Fast rate of voltage correction
- Fixed output voltage
- Available in single-phase and three-phase models
Description
Cosmic® Static Voltage Regulators are controlled by a powerful microprocessor that monitors the input voltage and adjusts the output voltage accordingly. This ensures that your electronic devices always receive the correct voltage, regardless of the input voltage fluctuations. Cosmic® Static Voltage Regulators are an essential investment for anyone who wants to protect their electronic devices from voltage fluctuations. These are very effective at protecting electronic devices from voltage fluctuations. It works by using a transformer to adjust the input voltage to a constant level. Cosmic® Static Voltage Regulators have a wide input voltage range, typically from 165V to 295V AC for single-phase voltage stabilizers and from 285V to 510V AC for three-phase voltage stabilizers.
Specification
|
PARTICULARS |
SINGLE PHASE |
THREE PHASE |
|---|---|---|
|
PRODUCT CAPACITY |
3Kva – 15Kva |
3Kva – 300Kva |
|
INPUT VOLTAGE RANGE |
165 to 295 V AC |
285 to 510 V AC |
|
OUTPUT VOLTAGE |
230 Volts |
415 Volts |
|
REGULATION |
+-1% |
+-1% |
|
RATE OF VOLTAGE |
2000 volts / sec |
4000 volts / sec |
|
INPUT FREQUENCY RANGE |
47 to 53 Hz |
47 to 53 Hz |
|
OUTPUT CAN BE SET |
220V – 240V |
380V – 415V |
|
EFFICIENCY |
98% |
98% |
|
OUTPUT WAVE FORM |
Sinusoidal |
Sinusoidal |
|
TECHNOLOGY |
DSP Controlled |
DSP Controlled |
|
IGBT Based |
Static Voltage |
Static Voltage Regulator |
|
LCD Display |
Input voltage Output voltage Output trip Input Low Input High |
Input voltage 1 & 3 phase Output voltage Output trip Input Low Input High |
|
PROTECTION |
Low / High Voltage, Short circuit Surge, Over load and |
Low / High Voltage, Surge, Over load and |
|
SOFT SWITCH ON |
Ensure Full protection |
Ensure Full protection |
|
OPTIONS |
Remote monitoring Wide Range |
Remote monitoring Wide Range |
Frequently Ask Question Now.
What are the benefits of using Cosmic® Static Voltage Regulators?
Cosmic® Static Voltage Regulators are known for their high quality, reliability, and durability. They offer a variety of benefits, including:
- Protection from voltage fluctuations
- Improved performance of electronic devices
- Extended lifespan of electronic devices
How do I choose the right Static Voltage Regulator?
When choosing a Static Voltage Regulator, it is important to consider the following factors:
- The type of electronic devices you need to protect
- The power rating of your electronic devices
- The input voltage range of your voltage stabilizer
- The output voltage range of your voltage stabilizer
What is the difference between a single-phase and three-phase voltage regulator?
Single-phase regulators are used for domestic applications, while three-phase voltage stabilizers are used for industrial applications.
What is the input voltage range of Cosmic® Static Voltage Regulators?
Cosmic® Static Voltage Regulators have a wide input voltage range, typically from 165V to 295V AC for single-phase voltage stabilizers and from 285V to 510V AC for three-phase voltage stabilizers.
What is the output voltage of Cosmic® Static Voltage Regulators?
Cosmic® Static Voltage Regulators have a fixed output voltage of 230V for single-phase voltage stabilizers and 415V for three-phase Static Regulators.
What is the rate of voltage correction of Cosmic® Static Voltage Regulators?
Cosmic® Static Voltage Regulators can correct voltage fluctuations very quickly. Cosmic® Static Voltage Regulators have a rate of voltage correction of 2000 volts/sec for single-phase voltage stabilizers and 4000 volts/sec for three-phase voltage stabilizers.
