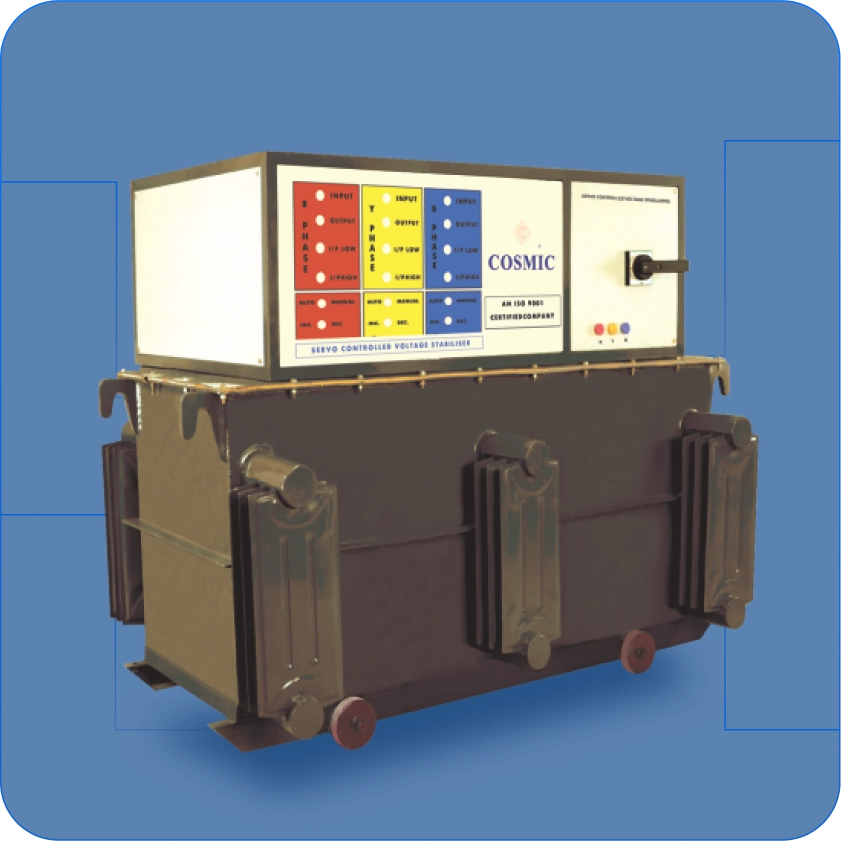

Cosmic® Servo Voltage Stabilizer
Cosmic® Servo Voltage Stabilizer
Cosmic® Servo Voltage Stabilizers deliver precise, stable voltage for your entire facility using advanced servo motor–controlled technology. Designed to handle wide voltage fluctuations, our systems efficiently correct overvoltage and undervoltage conditions, protect sensitive equipment, and enhance power quality. Ideal for industries, commercial buildings, hospitals, and data centers, Cosmic® Servo Voltage Stabilizers ensure low-maintenance operation, high durability, and energy-efficient performance.
Features
- Protects sensitive electronic equipment from voltage fluctuations
- Provides constant output voltage, even when the input voltage fluctuates
- Available in a wide range of capacities, from 1KVA to 1000KVA
- Easy to install and operate
- Comprehensive warranty
- Ideal for centralized applications in any industry
Description
Cosmic® Servo Voltage Stabilizers are the effective solution for voltage fluctuations. It uses a servo motor to adjust the position of a variable transformer. This variable transformer is connected to the input and output of the stabilizer. When the input voltage fluctuates, the servo motor adjusts the position of the variable transformer to maintain a constant output voltage. This ensures that your equipment receives a stable and reliable power supply, even in the event of voltage fluctuations. Cosmic® Servo Voltage Stabilizers are available in a wide range of capacities, from 1KVA to 1000KVA, and can be used in both single-phase and three-phase applications.
Specification
|
PARTICULARS |
SINGLE PHASE |
THREE PHASE |
|
INPUT VOLTAGE RANGE |
170 to 270 V |
295 to 465 V AC |
|
OUTPUT VOLTAGE |
230 Volts |
400 Volts |
|
REGULATION |
+-1% |
+-1% |
|
RATE OF VOLTAGE CORRECTION |
-35 volts / sec |
60 Volts / sec |
|
INPUT FREQUENCY RANGE |
-47 to 53 Hz |
47 to 53 Hz |
|
OUTPUT STABILITY |
220V – 240V |
380V – 415 V |
|
EFFICIENCY |
98% |
98% |
|
OUTPUT WAVE FORM |
Sinusoidal |
Sinusoidal |
|
SERVO MOTOR DRIVE |
Burnt proof AC Motor with Fuse |
Burnt proof AC Motor with Fuse |
|
INDICATIONS |
Mains Output on Cut-off Input low Input High |
Mains Output on Cut-off Input low Input High |
|
PROTECTION |
Low / High Voltage Over load and TIME Delay |
Low / High Voltage Over load and TIME Delay |
|
METERING |
Voltmeter Analog |
Voltmeter Analog |
|
OPTIONS |
Digital Meter and Wide Range |
Digital Meter and Wide Range |
Frequently Ask Question Now.
How does Cosmic® Servo Voltage Stabilizer work?
Cosmic® Servo Voltage Stabilizer uses servo motor to adjust the position of a variable transformer. This variable transformer is connected to the input and output of Cosmic® Servo Voltage Stabilizer. When the input voltage fluctuates, the servo motor adjusts the position of the variable transformer to maintain a constant output voltage.
What are the benefits of using Cosmic® Servo Voltage Stabilizer?
There are several benefits to using a servo voltage controlled stabilizer, including:
- Protection from voltage surges and sags
- Improved performance
- Extended lifespan
What is the capacity of Cosmic® Servo Voltage Stabilizer?
Cosmic® Servo Voltage Stabilizers are available in capacities ranging from 1KVA to 1000KVA.
What is the input voltage range of Cosmic® Servo Voltage Stabilizer?
Cosmic® Servo Voltage Stabilizers have an input voltage range of 170 to 270 volts AC for single phase units and 295 to 465 volts AC for three phase units.
What is the output voltage of Cosmic® Servo Voltage Stabilizer?
Cosmic® Servo Voltage Stabilizers have an output voltage of 230 volts AC for single phase units and 400 volts AC for three phase units.
What is the output stability of Cosmic® Servo Voltage Stabilizer?
Cosmic® Servo Voltage Stabilizers have an output stability of 220V – 240V for single phase units and 380V – 415 V for three phase units.
